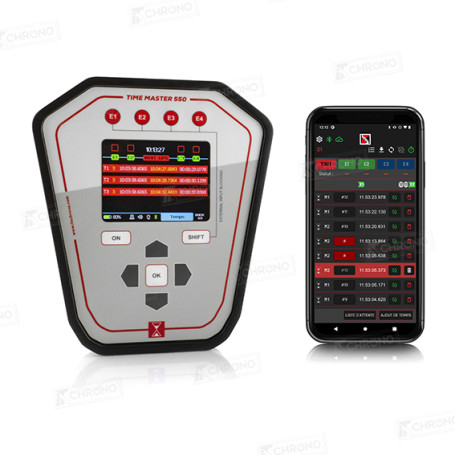

Time Master 550

The new Time Master TM550 chronometer developed by ITS Chrono offers an unequalled precision.

With its strong experience gained in very high-level timekeeping and many years of close collaboration with the TAG Heuer company, the ITS Chrono company and its whole team have designed this modern timekeeping device, incorporating the very latest technologies making it possible to achieve extraordinary precision to 1/1000000 second.

In line with the CP540 and CP545 Chronoprinters, the TM550 uses the same communication protocol to ensure compatibility with all the devices in the TAG Heuer Timing range (photocells, starting gates, Modulos panels, etc.)

Update Time Master TM550 with => ITS Updater

Time Master TM550 Firmware & version history => TM550 FIRMWARE

€1,700.00 tax excl.

€2,040.00
Tax included
check In stock
2 years warranty
Fast delivery with Chronopost
Return within 14 days

Description

Both are easy to use - the functionalities and internal tree structure of the product are similar to the CP545 - and equipped with a time base guaranteeing reliable measurement at 1/1,000,000, the TM550 will ensure the timing of events at all levels, both global and local.

The benefits of the Time Master TM550 :

  • Sensational precision : 1/1'000'000 second
  • An integrated GPS module :

                 - satellite detection for automatic time setting

                 - control of the running accuracy (drift)

                 - possibility to link and synchronize TM550 and CP545 together

  • Optimal timekeeping with its 4 inputs / outputs for external timing impulses
  • 3 timing modes : "BASIC" to manage timing from the application or a PC, "TIMING" to manage 4 different time recordings configured on the 4 inputs and "SPEED" to calculate 4 different speeds configured on the 4 inputs
  • A very comfortable internal memory : capacity of 500,000 times / 99 timing sessions
  • Multiple communication modes for transferring frames : Bluetooth, RJ45, RS232 and USB
  • 24 hours autonomy

         Application TM550 Bluetooth (BLE)        Application TM550 Bluetooth (BLE)

General

• Multi-sport stand-alone timing device

• Timing calculation (speed) 1/1'000'000 sec.

• Timing resolution (printer - PC) from 1 to 1/100,000 sec.

• Memory of 500,000 times for 99 sessions

• Sequential / concurrent numbers from 1 to 9,999

Inputs / Outputs

• 4 banana jack inputs for external timing impulses (working contact or closing contact without potential / short-circuit, open collector)

• Computer : bidirectional RS232 (or to drive external display)

• Bluetooth : for the App / Ethernet

• Extension port for planned Docking Stations

Keyboard

• 1 key ON : to turn ON the device

• 5 keys : Up / Down / Left / Right / OK

• 4 keys E1 / E2 / E3 / E4 : to lock and unlock external inputs

Display

• Matrix LCD discplay color

Adjustable contrast and brightness

Time base

• Thermo-compensated quartz 25 MHz

• Oscillator : VCTCXO

• Precision : +/- 0.1 ppm between -40°C and +85°C (-40°F and +185°F)

• Free Run stability : 20 years +/- 4.6 ppm (Stratum 3)

GPS Module

• Receiver type : 72-channel

   GPS L1C/A - SBAS L1C/A - QZSS L1C/A - QZSS L1 SAIF - GLONASS L1OF - BeiDou B1I - Galileo E1B/C

• Accuracy of time pulse signal : RMS = 30 ns / 99 % = 60 ns

• Time to first fix : Hot start = 1 s

Operating temperature

From -20°C and +60°C (-4°F and +140°F)

Power supply

• Internal : LiPo 4.2V

• External : 5 VDC via USB-C plug

Autonomy

24 hours with screen stand-by, Bluetooth and GPS activated

Dimensions and weight

• 172 x 151 x 48 mm (6.8 x 6 x 1.9 in)

• Weight without transport case : 550 g (19.4 oz)

Warranty : 2 years

Technical specifications

ITSTM550
32 cm
10 cm
36 cm
1.40 kg
Technical specifications
Width
Weight
Thickness
Lenght

Attachments

PS TM550 FR

Product Sheet - Time Master 550 FR

Download (480k)
PS TM550 EN

Product Sheet - Time Master 550 EN

Download (476k)
Guide TM550 FR

Quick User's Guide - Time Master 550 FR

Download (1.53M)
Guide TM550 EN

Quick User's Guide - Time Master 550 EN

Download (1.51M)
Manual TM550 UPDATER FR

Manual - Time Master 550 Updater FR

Download (583.36k)
Manual TM550 UPDATER EN

Manual - Time Master 550 Updater EN

Download (581.73k)
Manual TM550 THT ONLINE FR

Manual Link Time Master 550 - THT Online server FR

Download (2.43M)
Manual TM550 THT ONLINE EN

Manual Link Time Master 550 - THT Online server EN

Download (2.41M)
TS TM550 FR

Technical Sheet - Connect a PC to TM550 FR

Download (673.92k)
TS TM550 EN

Technical Sheet - Connect a PC to TM550 EN

Download (679.74k)
