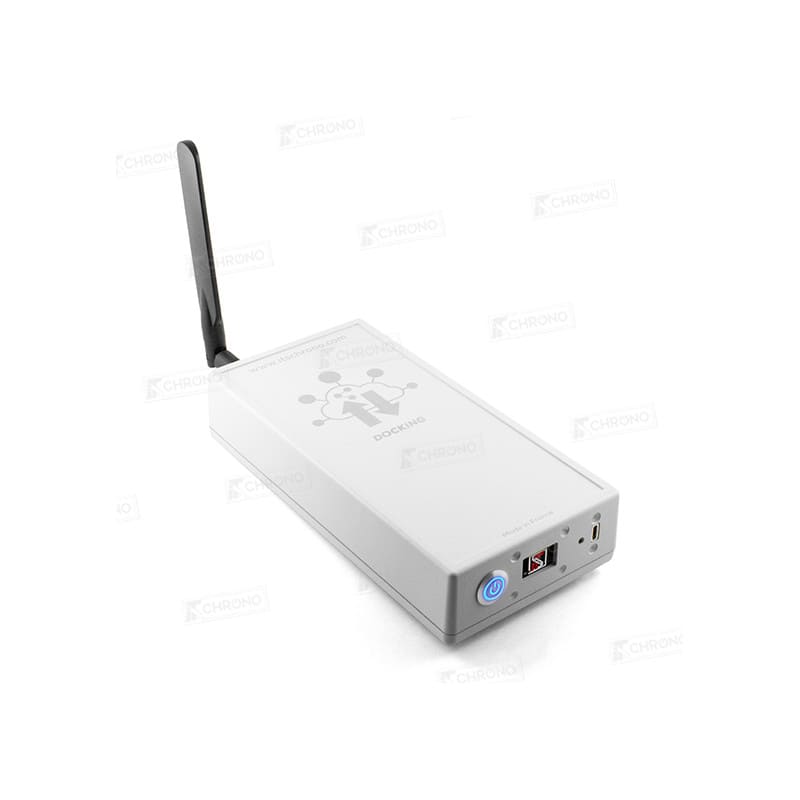

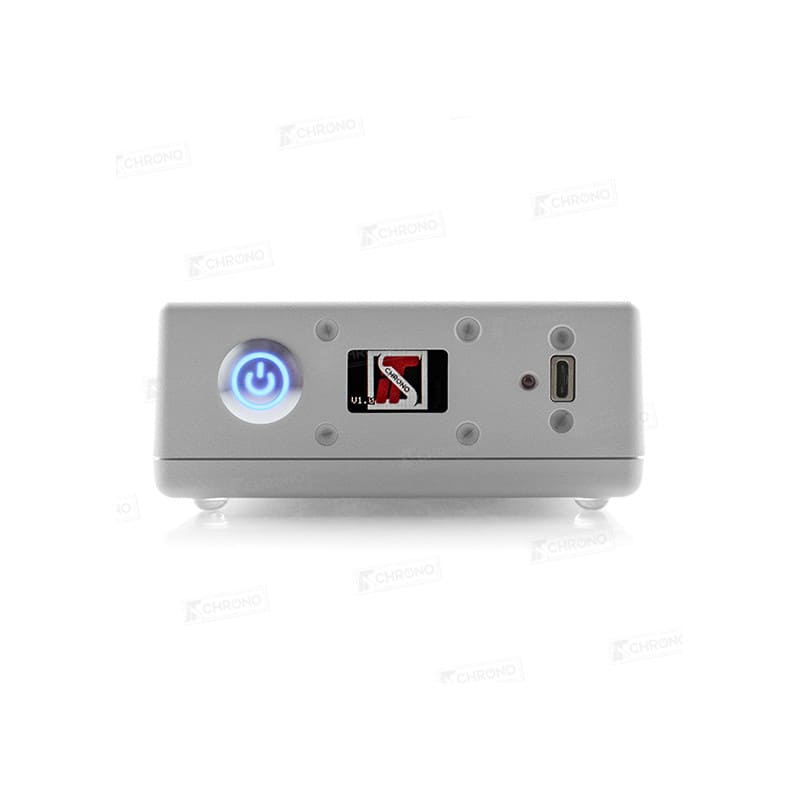

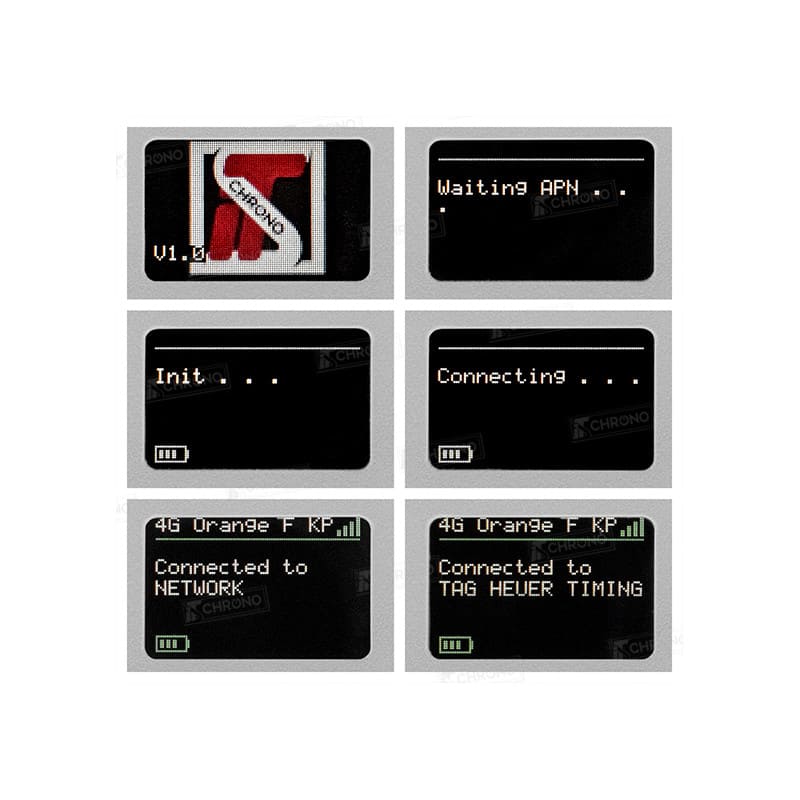

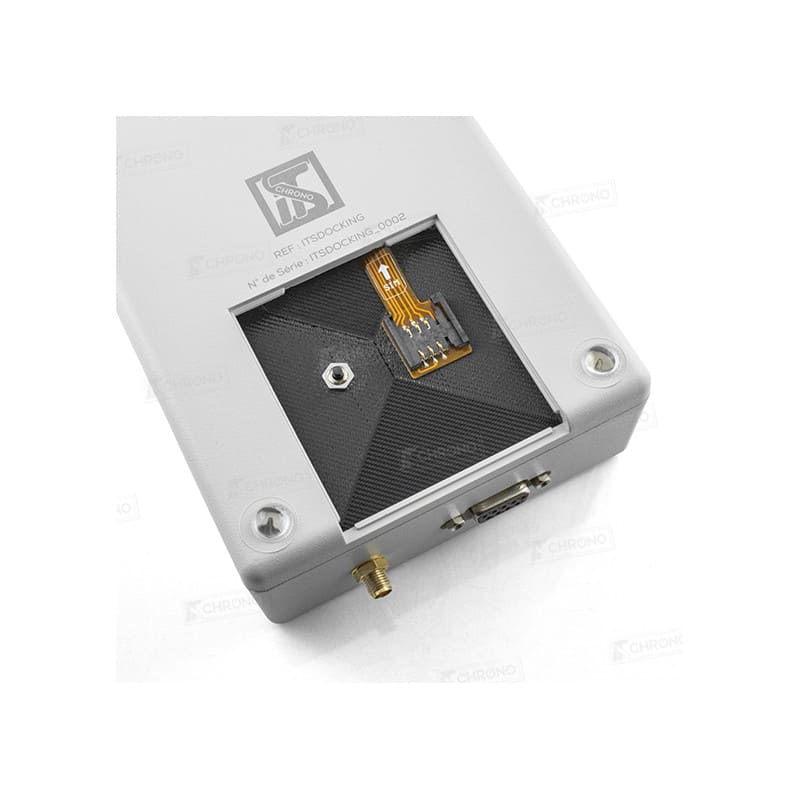

Docking GSM

Useful links :

- For APN settings, download the GPRS SETTINGS software

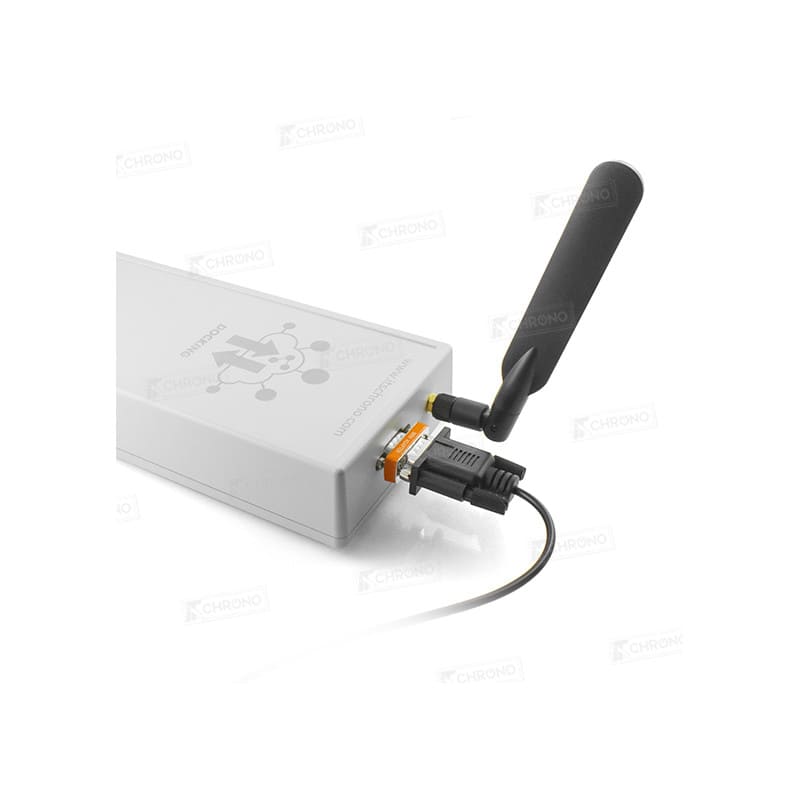

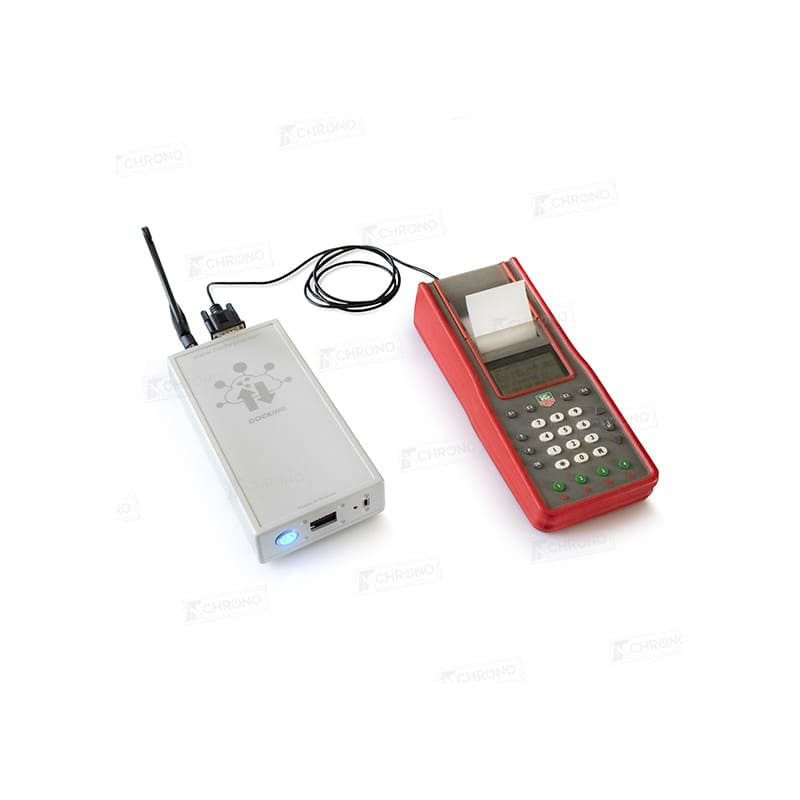

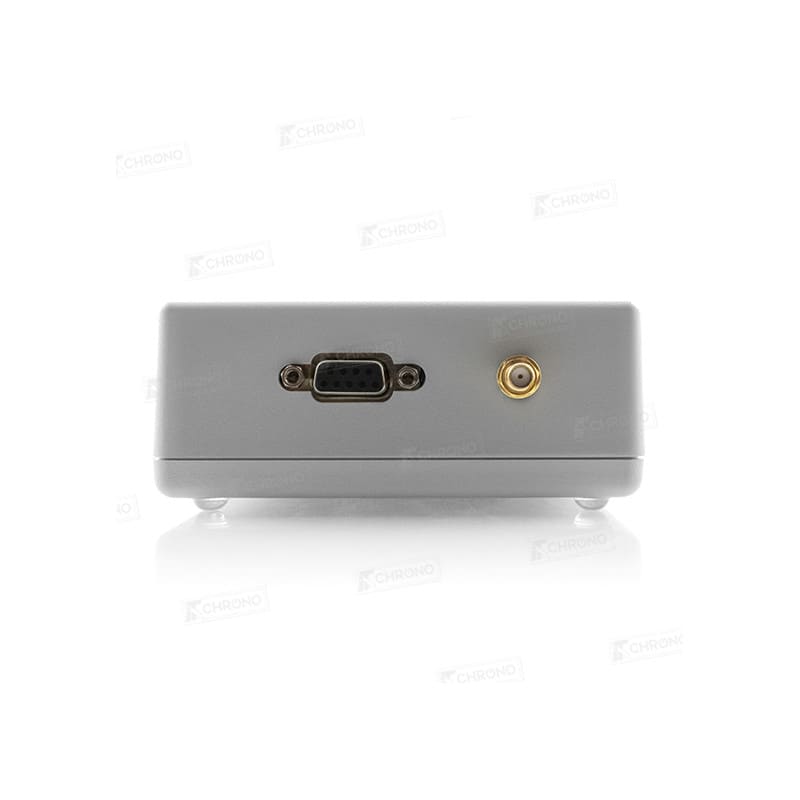

- For optimum connection with the CP545 (or CP540), use an RS232 connection cable such as HL540-10

- To update your Docking :

     * make sure you have a USB-RS232 converter such as CO3M or CO2M

     * download the latest Firmware version for proper operation with the TAG Heuer Timing Online server

     * install it with the ITS Updater software

-  Would you like to use another server ? Contact us and get a different firmware.

General

• Operating temperature -20°C to +60°C

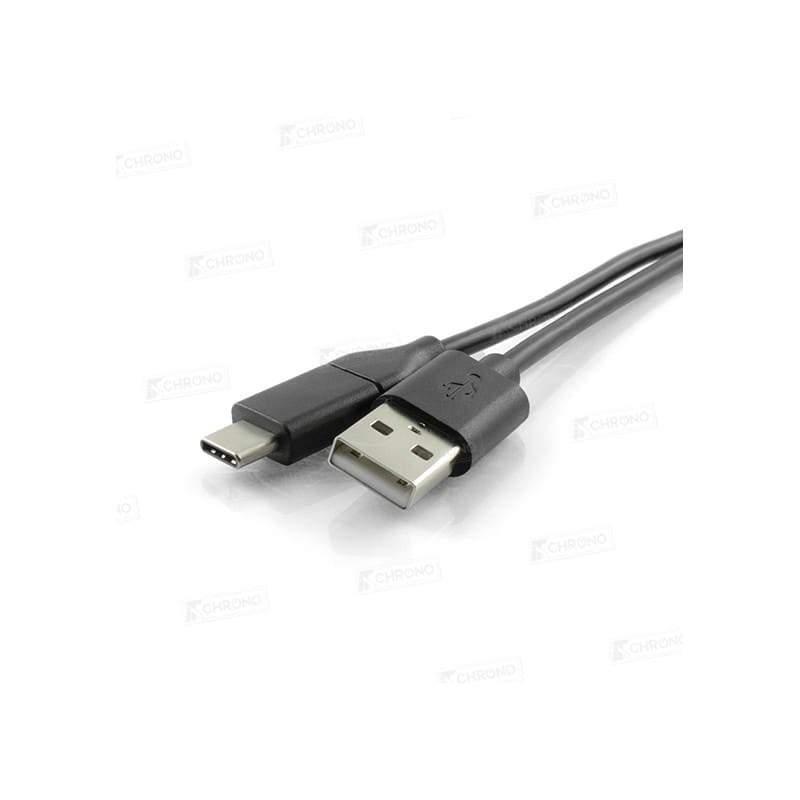

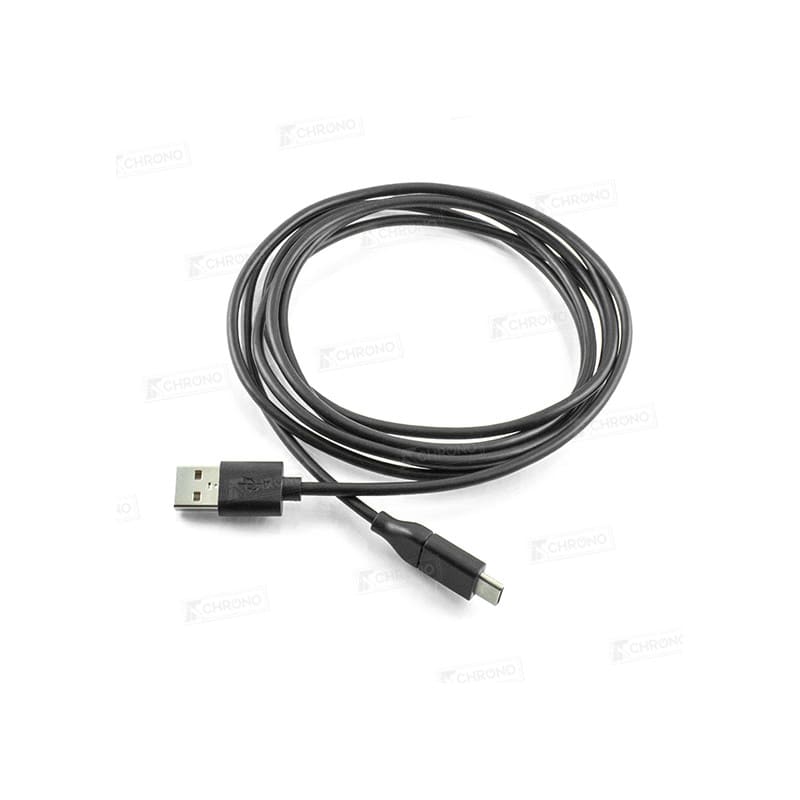

• 5VDC external power supply
• Autonomy : 30 hours

Battery module

• 7.4V Li-Po 3600mAh
• Charging temperature 0°C to +40°C
• Maximum charging current 1A
• Estimated maximum charging time ~ 4h

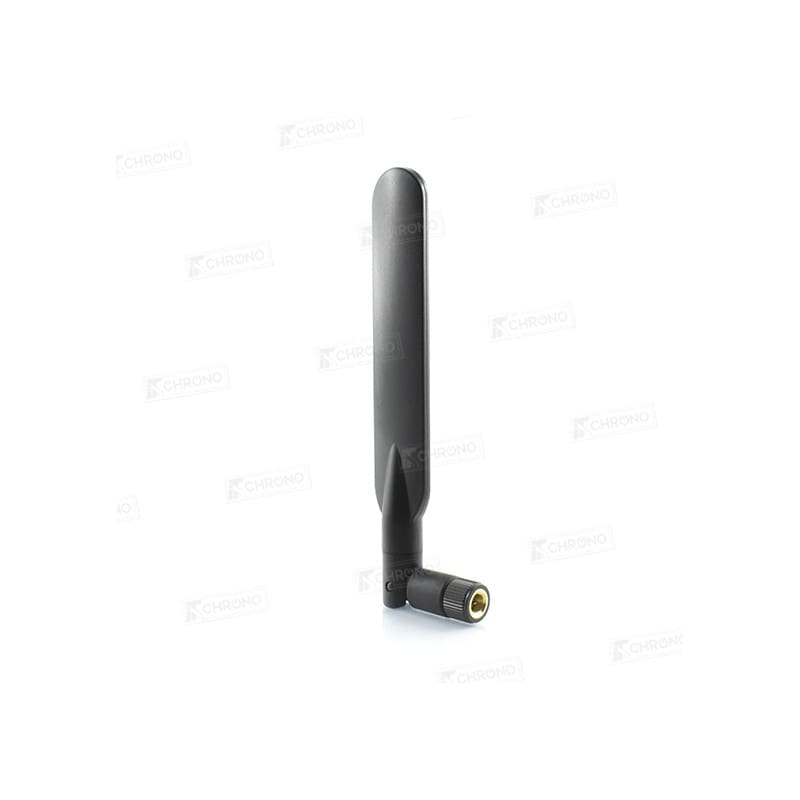

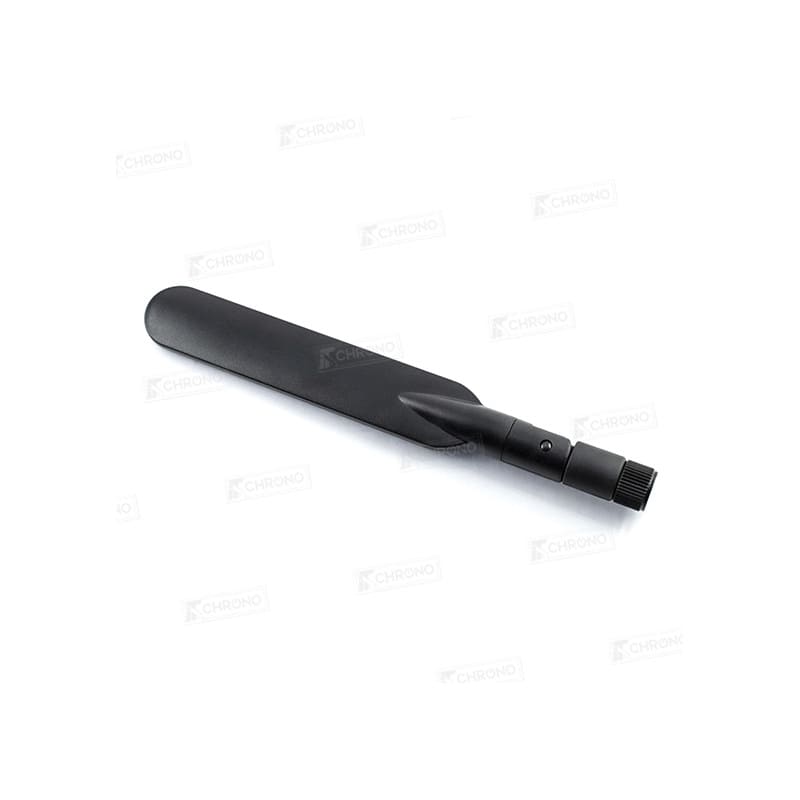

GSM module

LTE Cat-4/LTE Cat-1 (4G) :

• Network type: LTE TDD
• Associated frequency band: B38/B39/B40/B41
• Network type: LTE-FDD
• Associated frequency band: B1/B3/B5/B8
• Data transmission speed: 150Mbps(DL)/50Mbps(UL)

3G:

• Network type: UMTS/HSDPA/HSPA+
• Associated frequency band: B1/B8
• Network Type: TD-SCDMA
• Associated frequency band: B34/B39
• Data transmission speed: 42Mbps(DL)/5.76Mbps(UL)

2G:

• Network type: GSM/GPRS/EDGE
• Associated frequency band: 900/1800 MHz
• Data transmission speed: 2G (EDGE) = 236.8 Kbps(DL) / 236.8 kKbps(UL)
• Data transmission speed: 2G (GPRS) = 85.6 Kbps(DL) / 85.6 kKbps(UL)

Transmission power:

- GSM/GPRS power class:

• GSM850: 4 (2W)
• EGSM900: 4 (2W)
• DCS1800: 1 (1W)
• PCS1900: 1 (1W)

- EDGE power class:

• GSM850: E2 (0.5W)
• EGSM900: E2 (0.5W)
• DCS1800: E1 (0.4W)
• PCS1900: E1 (0.4W)

- UMTS power class:

• WCDMA: 3 (0.25W)

- LTE power class: 3 (0.25W)

Warranty : 2 years
