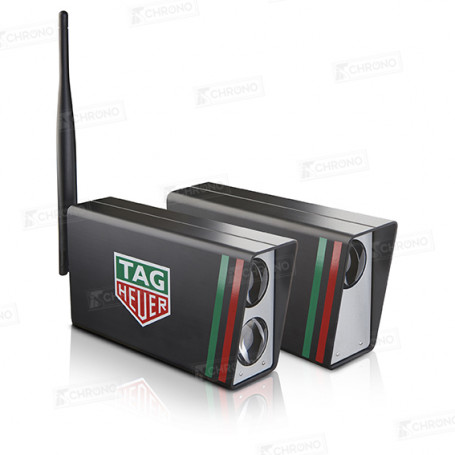

Wireless cell 100 mW (Tr / Rc)

Kit includes 1 wireless photocell 100 mW (HL3-100), 1 infra-red transmitter 100 mW (HL3-000), 1 antenna, 1 charger and 1 suitcase.

Radio receiver 100 mW for receiving cell impulses sold separately.

RECEIVER HL615-RX



2 years warranty
Fast delivery with Chronopost
Return within 14 days

Description

FIS & FEI approved

2016 sign the return of TAG Heuer in technological innovation timing by offering us a new range of photocells. The previous models were already very reliable and they have been upgraded to offer a Wireless connection.

The experience of TAG Heuer in the field of infrared photocells has developed highly reliable, accurate and insensitive to external influences. The novelty in 2016 is to use these cells without any wired connections. For this you only have to carry a radio receiver HL615-2 in the shift of timing to receive impulsions cells.

Principe
High frequency infra-red (32.768kHz)
Detection of signal by frequency interruption

Infra-Red Distance possible
up to 40 meters (130 ft.) in LOW power position
up to 80 meters (260 ft.) in HIGH power position

Output impulse
Via opto couplers and working contact / open collector

Working temperature
- 20°C to + 50°C

Internal battery
Li-Pol 3.7V 3800mAh (+ power supply 7.5V 650mA HL3-1)

Autonomy
Wireless Photocell Approx. 330 hours at 20°C
Infra-Red Transmitter LOW position: 210 hours | HIGH position: 100 hours

Precision
Fixed delay 200ms, +/- 0.5/10'000 sec (+/- 0.02 ms)

Dimensions
150 x 80 x 40 mm

Weight
800 gr

Frequency
ISM Band– 868 MHz

Power
100 mW

Range
1 km under optimal conditions, direct line of sight

Technical specifications

HL3-135
30 cm
30 cm
1.50 kg
Technical specifications
Width
80 mm
Height
40 mm
Weight
0,800
Lenght
150 mm
