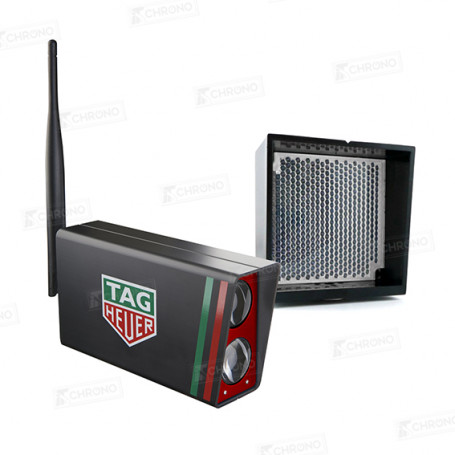

Wireless cell 500 mW (Tr / Rf)

FIS & FEI approved

Our latest HL3-5 photocell has an internal quartz clock, and an integrated 500mW radio module.

Integrating this new technology with our existing products like the HL675 Radio Data/Impulse Transmission, it is possible to synchronize up to 8 photocells at zero or with Time-of-Day, corresponding to the 8 possible inputs (CP540/545 channels 1-4 and 5-8).

This allows the photocells to independently transmit data (ToD) or impulses.

This new concept also gives the ability to perform training without a Chronoprinter or MiniTimer, the photocells HL3-5x and a HL675 Receiver are directly connected to a PC

Principe
High frequency infra-red (32.768kHz)
Detection of signal by frequency interruption

Infra-Red Distance possible
up to 20 meters (65 ft.) with reflector

Output impulse
Via opto couplers and working contact / open collector

Working temperature
- 20°C to + 50°C

Internal battery
Li-Pol 3.7V 3800mAh (+ power supply 7.5V 650mA HL3-1)

Autonomy
Wireless Photocell Approx. 330 hours at 20°C
Infra-Red Transmitter LOW position: 210 hours | HIGH position: 100 hours

Precision
Fixed delay 200ms, +/- 0.5/10'000 sec (+/- 0.02 ms)

Dimensions
Transmitter : 150 x 80 x 40 mm
Reflector : 93 x 50 x 97 mm

Weight
600 gr

Frequency
ISM Band– 868 MHz

Power
500 mW

Range
3.5 km under optimal conditions, direct line of sight
