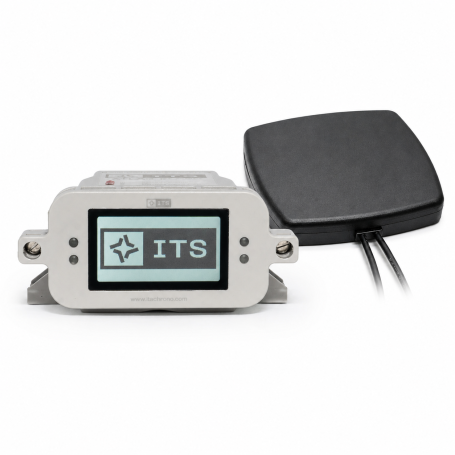

Atlas Flash GPS beacon with remote antenna

Combining precise GPS tracking with dynamic on-board signalling, Atlas Flash sets a new standard for connected safety and race management, meeting the expectations of professional motorsport events worldwide.

Performance & Technology

The Atlas Flash GPS Beacon is built around a high-precision GPS receiver, combined with a robust 2.4 GHz wireless communication link to trackside coordinators. This architecture ensures fast, reliable and low-latency data transmission across the entire circuit. Designed for professional motorsport environments, Atlas Flash delivers exceptional positioning accuracy, high update rates and resilient wireless performance, even under demanding race conditions.

Key Performance Highlights

• Real-time positioning at 25 Hz (25 positions per second)

• Speed accuracy: 0.18 km/h

• Accelerometer sensitivity: 0.048 G

• Multi-GNSS compatibility: GPS / Galileo / GLONASS / BeiDou

• Up to 96 satellites tracked simultaneously

Atlas Flash GPS Beacon – Technical Specifications

• Wireless interface: 2.4 GHz

• Ingress protection: IP54

• Power supply: 12 V DC

• External antenna :

○ 1 × 2.4 GHz (data)

○ 1 × GPS antenna

• Dimensions: 950 × 950 × 46 mm

• Power Consumption: 350 mA

• Weight: 200 g

Atlas Flash GPS Beacon with Integrated Display

The Atlas Flash GPS Beacon features a compact, high-performance 1.9-inch color LCD display, specifically selected for motorsport safety applications where readability, reliability and robustness are critical. Based on a normally-black TFT architecture, the display delivers excellent contrast and wide viewing angles, ensuring clear visibility from all positions inside the cockpit.

Display Technology Highlights

• 1.9" TFT LCD color display

• Resolution: 170 × 320 pixels (RGB)

• Viewing direction: all-view (optimized for best image quality)

Driven by a dedicated display controller, the display ensures fast refresh rates and reliable real-time rendering of safety information.

Brightness & Visibility

• Typical luminance: 500 cd/m²

This configuration guarantees excellent readability in daylight conditions, including direct sunlight and high-contrast environments commonly encountered on circuit.

Environmental & Mechanical Characteristics

• Operating temperature: –20 °C to +70 °C

• Storage temperature: –30 °C to +80 °C

The display is fully integrated into the Atlas Flash housing and designed to withstand vibration, temperature variations and harsh operating conditions typical of professional motorsport.

Warranty

• 2-year manufacturer warranty
