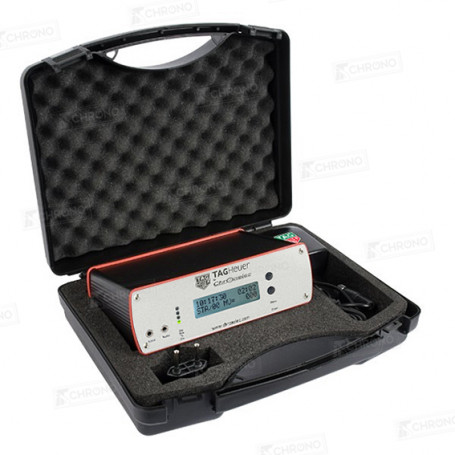

Elite Decoder 2 inputs loops

The Elite decoder is generally used for races wichs require the use of minimum 2 loops. The decoder can be paired with other remote decoders to handle up to 32 different loops.

€4,150.00
check In stock
2 years warranty
Fast delivery with Chronopost
Return within 14 days

Description

The decoder save all passings of competitors in an internal FLASH memory, wich makes it possible to restore the missed passings in case of a computer failure.

An internal battery ensures the operation of the decoder during a power failure. The autonomy of this battery is 2 hours.

The LCD display shows useful information such as the noise level, the detection level of the loops, the last transponder number identified. It also shows the elapsed time or the time of day, wich can be synchronized by the internal GPS or by the computer.

The decoder has an Ethernet and RS232 interface for communication with the computer.

Compatible products :

Transponder : Elite, LS, RC, RT et Multi-pilotes

Features :

GPS Synchronization
FLASH memory
Loops management (1 to 32)
Clock stability : Oscillator TCXO 0.5 ppm
Resolution : 0.001 s
Temperature range : -20° à 55°C (-4° à 131°F)
Dimensions : 160 x 100 x 52 mm (6.3 x 3.9 x 2 in)

Power supply :

12 VDC

Connections :

1 RJ45 (Ethernet)
2 loops input
1 photocell input
1 manual entry
1 audio output
1 AUX output
1 RS232

Warranty 2 years

Technical specifications

ITSDE
35 cm
25 cm
20 cm
1 kg
Technical specifications
Width
160 mm
Height
52 mm
Weight
600 gr
Lenght
100 mm

Attachments

TS TCD PC FR

Technical Sheet - How to connect a computer to a induction decoder FR

Download (820.68k)
TS TCD PC EN

Technical Sheet - How to connect a computer to a induction decoder EN

Download (801.67k)
TS TCD IP FR

Technical Sheet - Change IP Decoder FR

Download (1.33M)
TS TCD IP EN

Technical Sheet - Change IP Decoder EN

Download (1.31M)
PS TCDE FR

Product Sheet - Elite GPS Decoder FR

Download (1009.13k)
PS TCDE EN

Product Sheet - Elite GPS Decoder EN

Download (1009.78k)
Manual TCDE EN

Manual - Elite GPS Decoder EN

Download (676.27k)
TS TCDE FR

Technical Sheet - Noise Level & Elite decoder - FR

Download (933.9k)
TS TCDE EN

Technical Sheet - Noise Level & Elite decoder - EN

Download (959.06k)
