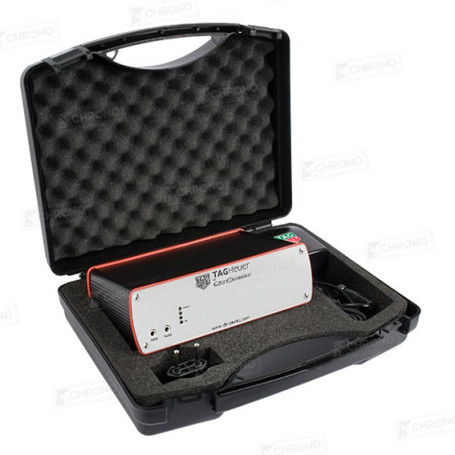

Protime Decoder 2 inputs loops

The Protime decoder 2 inputs is used in general in road cycling events or karting tracks with the management of 2 passages. It can serve as backup with a Elite decoder.

€2,805.00
block Available within 4 to 5 weeks minimum after validation of the order
2 years warranty
Fast delivery with Chronopost
Return within 14 days

Description

Several options are not available :

This decoder does not have SD card to store passings, nevertheless the decoder makes it possible to store in RAM memory up to 2000 passages in case of a computer failure.

The decoder has an Ethernet interface and an RS232 interface for communication with the computer.

Compatible products :

Transponder : Elite, LS, RC, RT et Multi-pilotes

Features :

Clock stability : Oscillator TCXO 0.5 ppm
Resolution : 0.001 s
Temperature range : -20° à 55°C (-4° à 131°F)
Dimensions : 160 x 100 x 52 mm (6.3 x 3.9 x 2 in)

Power supply :

12 VDC

Connections :

1 RJ45 (Ethernet)
2 loops inputs
1 photocell input
1 manual entry
1 audio output
1 AUX output
1 RS232

Warranty 2 years

Technical specifications

ITSDP2
35 cm
25 cm
20 cm
1 kg
Technical specifications
Width
160 mm
Weight
600 g
Thickness
52 mm
Lenght
100 mm

Attachments

TS TCD PC FR

Technical Sheet - How to connect a computer to a induction decoder FR

Download (820.68k)
TS TCD PC EN

Technical Sheet - How to connect a computer to a induction decoder EN

Download (801.67k)
TS TCD IP FR

Technical Sheet - Change IP Decoder FR

Download (1.33M)
TS TCD IP EN

Technical Sheet - Change IP Decoder EN

Download (1.31M)
PS TCDP2 FR

Product Sheet - Protime Decoder 2 inputs FR

Download (410.07k)
PS TCDP2 EN

Product Sheet - Protime Decoder 2 inputs EN

Download (410.74k)
