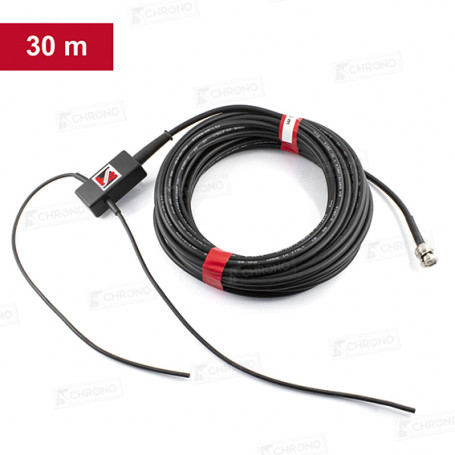

Passive Loop 30 m coax RG223

This ITS Chrono timing loop is compatible with all active TAG Heuer By Chronelec, Chronelec (LS, Elite) and AMB/Mylaps transponders.

It comes with a 475 Ohm resistor and 30 m (98.4 ft) of coaxial double shielded cable.

€255.00 tax excl.

€306.00
block Available to order
2 years warranty
Fast delivery with Chronopost
Return within 14 days

Description

The loop works in snow, ice, mud, dirt ground and asphalte.

A passive detection loop works as an antenna. It captures the transponder signals and transmits them to the decoder.

The maximum width of the tracks is 25 m (82 ft) and the spacing of the wires should be 60 cm (23.6 in)

Features :

Waterproof
Temperature range : -20° à 70°C (-4° à 158°F)
Loop box dimensions : 92 x 25 x 18 mm (3.6 x 1 x 0.7 in)
Weight : 1800 g (63.5 oz)

Connections :

Double shielded coaxial cable RG223
Wire loop

Warranty 2 years

Technical specifications

ITSBP30
30 cm
30 cm
20 cm
2.50 kg
Technical specifications
Weight
1,8 kg

Attachments

TS Passive Loop Asphalt FR

Recommendation for installing the loop on asphalt track

Download (966.08k)
TS Passive Loop Asphalt EN

Recommendation for installing the loop on asphalt track

Download (964.86k)
TS Passive Loop Dirt Track FR

Recommendation for installing the loop on dirt track

Download (926.65k)
TS Passive Loop Dirt Track EN

Recommendation for installing the loop on dirt track

Download (925.55k)
TS Passive Loop Detection FR

Transponder detection height test

Download (427.77k)
TS Passive Loop Detection EN

Transponder detection height test

Download (436.82k)
