Protime Decoder 1 input loop of TAG Heuer by Chronelec brand for sale on ITS Chrono
zoom_out_map
chevron_left chevron_right

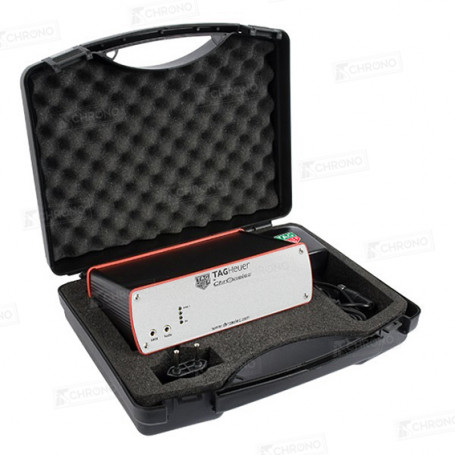

Protime Decoder 1 input loop

This product is no longer sold

The Protime decoder 1 input is used in general in road cycling events or karting tracks or in addition, it can serve as backup with a Elite decoder.

2 years warranty
Fast delivery with Chronopost
Return within 14 days

Description

Several options are not available :

This decoder does not have SD card to store passings, nevertheless the decoder makes it possible to store in RAM memory up to 2000 passages in case of a computer failure.

The decoder has an Ethernet interface and an RS232 interface for communication with the computer.

Compatible products :

Transponder : Elite, LS, RC, RT et Multi-pilotes

Features :

Clock stability : Oscillator TCXO 0.5 ppm
Resolution : 0.001 s
Temperature range : -20° à 55°C (-4° à 131°F)
Dimensions : 160 x 100 x 52 mm (6.3 x 3.9 x 2 in)

Power supply :

12 VDC

Connections :

1 RJ45 (Ethernet)
1 loop input
1 photocell input
1 manual entry
1 audio output
1 AUX output
1 RS232

Warranty 2 years

Technical specifications

ITSDP1
35 cm
25 cm
1.50 kg
Technical specifications
Width
160 mm
Weight
600 g
Lenght
100 mm

Attachments

PS ITSDP1 FR

Product Sheet - Protime Decoder 1 input FR

Download (520.98k)
PS ITSDP1 EN

Product Sheet - Protime Decoder 1 input EN

Download (521.7k)
TS ITSD PC FR

Technical Sheet - How to connect an induction decoder to a computer FR

Download (756.1k)
TS ITSD PC EN

Technical Sheet - How to connect an induction decoder to a computer EN

Download (734.44k)
TS ITSD IP FR

Technical Sheet - How to change the IP address of a decoder FR

Download (956.83k)
TS ITSD IP EN

Technical Sheet - How to change the IP address of a decoder EN

Download (967.3k)
Global Timing Solutions FR

Brochure - Global Timing Solutions FR

Download (7.26M)
Global Timing Solutions EN

Brochure - Global Timing Solutions EN

Download (7.24M)
