Active Loop 10 m coax of TAG Heuer Timing brand for sale on ITS Chrono
zoom_out_map
chevron_left chevron_right

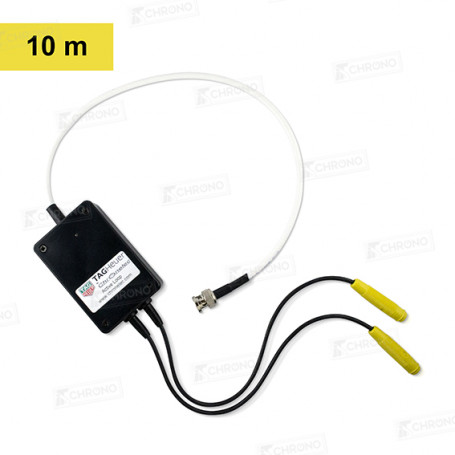

Active Loop 10 m coax

This loop is compatible with TAG Heuer by Chronelec and Chronelec transponder (RF, RC, RT, RF-S, RF-I).

10 m (32.8 ft) coaxial cable.

2 years warranty
Fast delivery with Chronopost
Return within 14 days

Description

The loop works in snow, ice, mud, dirt ground and asphalte.

An active detection loop works as an antenna by picking up the transponder signals and emitting an activation field to activate the transponders.

The maximum width of the tracks is 12 m (39.4 ft) and the spacing of the wires should be 80 cm (12.6 ft) for a speed below 60 km/h (37.3 mph) and 110 cm (3.6 ft) for speed greater than 60 km/ (37.3 mph)

Features :

Waterproof
Temperature range : -20° à 70°C (-4° à 158°F)
Dimensions : 85 x 56 x 27 mm (3.3 x 2.2 x 1 in)
Weight : 160 g (2.8 oz)

Connections :

Coaxial cable
Wire loop

Warranty 2 years

Technical specifications

ITSABAC10
25 cm
10 cm
0.80 kg

Attachments

TS Active Loop Asphalt FR

Recommendation for installing the loop on asphalt track

Download (748.45k)
TS Active Loop Dirt Track FR

Recommendation for installing the loop on dirt track

Download (724.08k)
TS Active Loop Detection FR

Transponder detection height test

Download (570.15k)
PS ITSABAC FR

Product Sheet - Active Loop FR

Download (4.29M)
PS ITSABAC EN

Product Sheet - Active Loop EN

Download (4.29M)
TS Active Loop Asphalt EN

Recommendation for installing the loop on asphalt track

Download (747.46k)
TS Active Loop Dirt Track EN

Recommendation for installing the loop on dirt track

Download (723.19k)
TS Active Loop Detection EN

Transponder detection height test

Download (568.23k)
