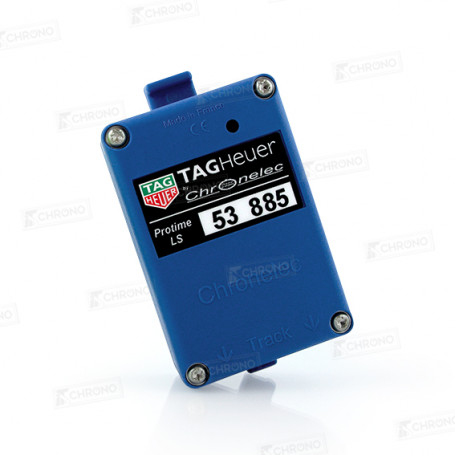

LS Batt Transponder only

Rechargeable LS Transponder

Smaller, More Resistant, Lighter !!

 official transponder

logo ufolep.jpg

€170.00
check In stock
2 years warranty
Fast delivery with Chronopost
Return within 14 days

Description

WARNING : This reference corresponds to the transponder ALONE, without charger and without support or staple.

This transponder is the most widespread in France.

It can be used for FFSA circuit races, FFM (Motocross, Supermoto, Pocket Bike), FFM league championships (Motocross) and UFOLEP Kart Cross.

FFSA & UFOLEP approved

Power supply

Autonomy of 4 days in full use / 18 hours of minimum charge.
NiMH battery.

Technical characteristics

Max detection speed : 200 km/h (124.3 mph)
Max detection height : 2.80 m (9 ft)
Operating temperature range : -20 ° C -> 70 ° C
Dimensions : 65 x 44 x 22 mm (2.6 x 1.7x 0.9 in)
Weight : 80 g (2.8 oz)

Bright indications :

Autonomy is shown from 1 to 4LED flashing every 10 seconds:

4 green flashing for a load of 75 to 100% battery (> = 7.5 days)
3 green flashing for a load of 50 to 75% of battery life (> = 5 days)
2 green flashing for a load of 25 to 50% of battery life (> = 2.5 days)
1 flashing green for a load of 10 to 25% of battery life (> = 1 day)
1 flashing red for a load of 0-10% burn (<24 hours)

The information level of charge is sent to the decoder when the transponder passes over the loop.

Technical specifications

ITSTLSB3
25 cm
6 cm
25 cm
0.60 kg
Technical specifications
Width
44 mm
Weight
80 g
Thickness
22 mm
Lenght
65 mm

Attachments

IG TCTLS EN FR

Installation Guide - LS Transponders EN FR

Download (1.79M)
