LS Batt Transponder Kit
zoom_out_map
chevron_left chevron_right

LS Batt Transponder Kit

LS rechargeable transponder

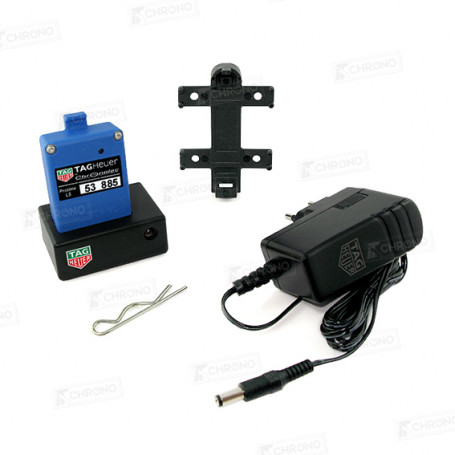

Individual Kit includes 1 LS Batt transponder (new model), 1 charger, 1 holder and 1 clip

 official transponder

logo ufolep.jpg

€215.00
2 years warranty
Fast delivery with Chronopost
Return within 14 days

Description

FFSA & UFOLEP approved

The transponder protime LS is recommended for cross (motocross, quad, kartcross ...) and karting competition. This transponder is most prevalent in France.

It can be used for racing FFSA Circuit earth, FFM (Motocross) League championships FFM (Motocross) and UFOLEP Kart Cross.

When the transponder is in the charger (charger off), standby is automatic, which ensures an autonomy of several months. One load per year is required to maintain the transponder in a state.

A tricolor LED indicates the charging status and range.

Power supply
battery life of 5 days in full use.
NiMH battery.

Technical characteristics

Max detection speed : 200 km/h (124.3 mph)
Max detection height : 2.80 m (9 ft)
Operating temperature range : -20°C -> 70°C (-4°F 6> +158°F)
Dimensions : 75 x 42 x 21 mm (2.95 x 1.65 x 0.82)
Weight : 80 g (2.8 oz)

Bright indications :

Autonomy is shown from 1 to 4LED flashing every 10 seconds:

4 green flashing for a load of 75 to 100% battery (> = 7.5 days)
3 green flashing for a load of 50 to 75% of battery life (> = 5 days)
2 green flashing for a load of 25 to 50% of battery life (> = 2.5 days)
1 flashing green for a load of 10 to 25% of battery life (> = 1 day)
1 flashing red for a load of 0-10% burn (<24 hours)

The LED is red when the tranponsdeur is charging and green when charging is complete.

The information level of charge is sent to the decoder when the transponder passes over the loop.

Technical specifications

ITSKILS3
25 cm
6 cm
25 cm
0.60 kg
Technical specifications
Width
42 mm
Weight
80 g
Thickness
21 mm
Lenght
75 mm

Attachments

IG TCTLS EN FR

Installation Guide - LS Transponders EN FR

Download (1.79M)
