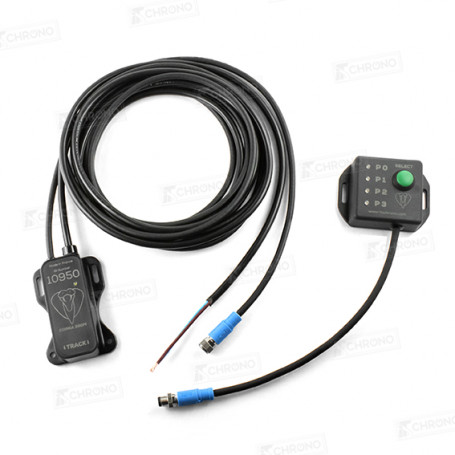

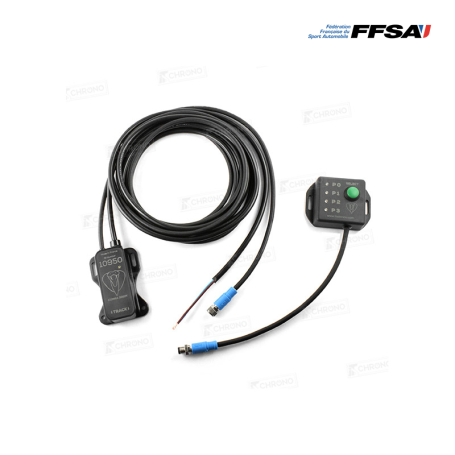

Cobra 360 Multi-pilot wire Transponder 12V

Developed for endurance car racing, the Cobra 360 Multi-pilot transponder allows to know in real time which driver of the crew is racing. The selector installed beforehand on the vehicle allows to identify the driver at the controls.

Official timing system for all FFSA French Circuit Championships (Asphalt, Earth and Ice).

THIS TRANSPONDER IS FIXED WITHOUT SUPPORT.

Logo FFSA

€335.00 tax excl.

€402.00
check In stock
2 years warranty
Fast delivery with Chronopost
Return within 14 days

Description

Official FFSA timing system
For all types of Circuit

France Championship GT4, V2V, Ultimate Cup Series, France truck Championship, Fun Cup, Ligier Cup JSR 2, Grand Prix de France Historique, Historic Tour Championnat de France Historique des Circuits, Dijon Motors Cup, Motors Festival de Croix en Ternois, Les 2 Tours d'Horloge VdeV, Trophée Tourisme Endurance, Challenge Caterham, Inter Ecuries ACO, ...

Power supply
The transponder must have its own power supply at 12 V.
Consumption : 12 mA max.

Technical specifications

Emission : Magnetic induction
Max detection speed : 360 km/h (223.7 mph)
Max detection height : 2.8 m (9 ft)
Operating temperature range : -20°C -> 70°C (-4°F -> +158°F)
Transponder dimensions : 81 x 52 x 22 mm (3.2 x 2 x 0.9 in)
Selector dimensions : 67 x 50 x 27 mm (3.1 x 1.9 x 0.9 in)
Transponder weight : 90 g (3.2 oz)
Selector weight : 35
g (1.2 oz)

Fixing : mounting holes in the transponder frame

Warranty : 2 years

Technical specifications

ITSCOBRAT360M
15 cm
15 cm
0.40 kg
Technical specifications
Width
28 mm
Weight
80 g
Thickness
23 mm
Lenght
70 mm

Attachments

PS ITSCOBRAT360M FR

Product Sheet - Cobra 360M FR

Download (416.24k)
PS ITSCOBRAT360M EN

Product Sheet - Cobra 360M EN

Download (415.26k)
IG ITSCOBRAT360 FR

Installation Guide - Cobra 360 Transponders FR

Download (1.66M)
IG ITSCOBRAT360 EN

Installation Guide - Cobra 360 Transponders EN

Download (1.66M)
Cobra System FR

Cobra Timing System Presentation FR

Download (4.76M)
Cobra System EN

Cobra Timing System Presentation EN

Download (4.75M)
